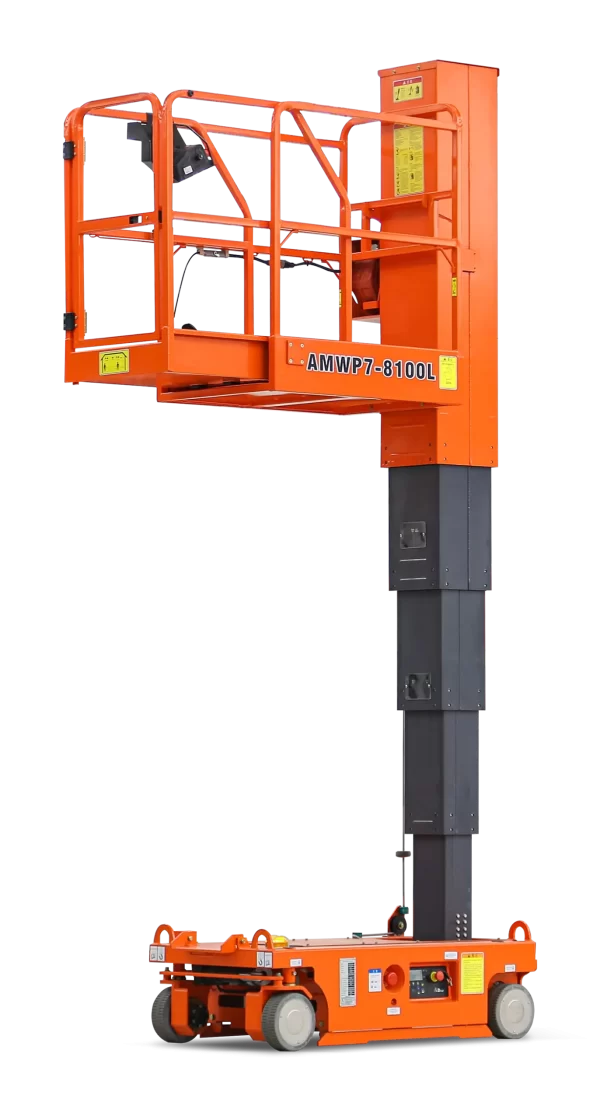

AMWP7-8100L

Engineered for enhanced safety and operational efficiency, AMWP7-8100 is equipped with an electric lifting push rod instead of a traditional hydraulic cylinder. This Oil-free and all-electric vertical lift comes with a brush less DC motor for environmental protection and energy optimisation.

KEY FEATURES

  • Light structure, flexible operations
  • No noise, 0 emissions
  • Equipped with energy saving capabilities
  • Equipped with a 2X12V/115Ah strong lithium battery pack with integrated charger

PRODUCT DETAILS

DIMENSIONS
Max. Working Height6.70m/22ft
Max. Platform Height4.70m/15ft 5in
Max. Horizontal Reach     /
Up and Over Height     /
Overall Length       1.45m/4ft 9in
Overall Width     0.76m/2ft 6in
Overall Height    1.99m/6ft 6in
Platform Size (Length×Width)     1.00m×0.76m/3ft 3in×2ft 6in
Platform Extension Size0.50m/1ft 8in
Ground Clearance(Stowed)       0.06m/2in
Ground Clearance(Raised)     0.014m/1in
Wheelbase      1.21m/4ft
Turning Radius (Inside/Outside)       0.60m/1.80m / 2ft/5ft 11in
Tyres    φ230×100mm
S.W.L        200kg/440lb
S.W.L On Extension113kg/249lb
Max. Occupants (Inside/Outside)      1/0
Gradeability       25%
Max. Working Slope        X-1.5°/Y-3°/ X-1.5°/Y-3°
Turret Rotation    /
Jib Movement       /
Travel Speed (Stowed)     3.6km/h / 2.20mph
Travel Speed(Raised)       0.5km/h / 0.30mph
Up/Down Speed      28/28sec
Overall Weight  990kg/2182lb
Battery 2×12V/115Ah
Integrated Charger     24V/15A
Driving Motor       2×24V/0.68kW
Lifting Motor         24V/1.4kW
